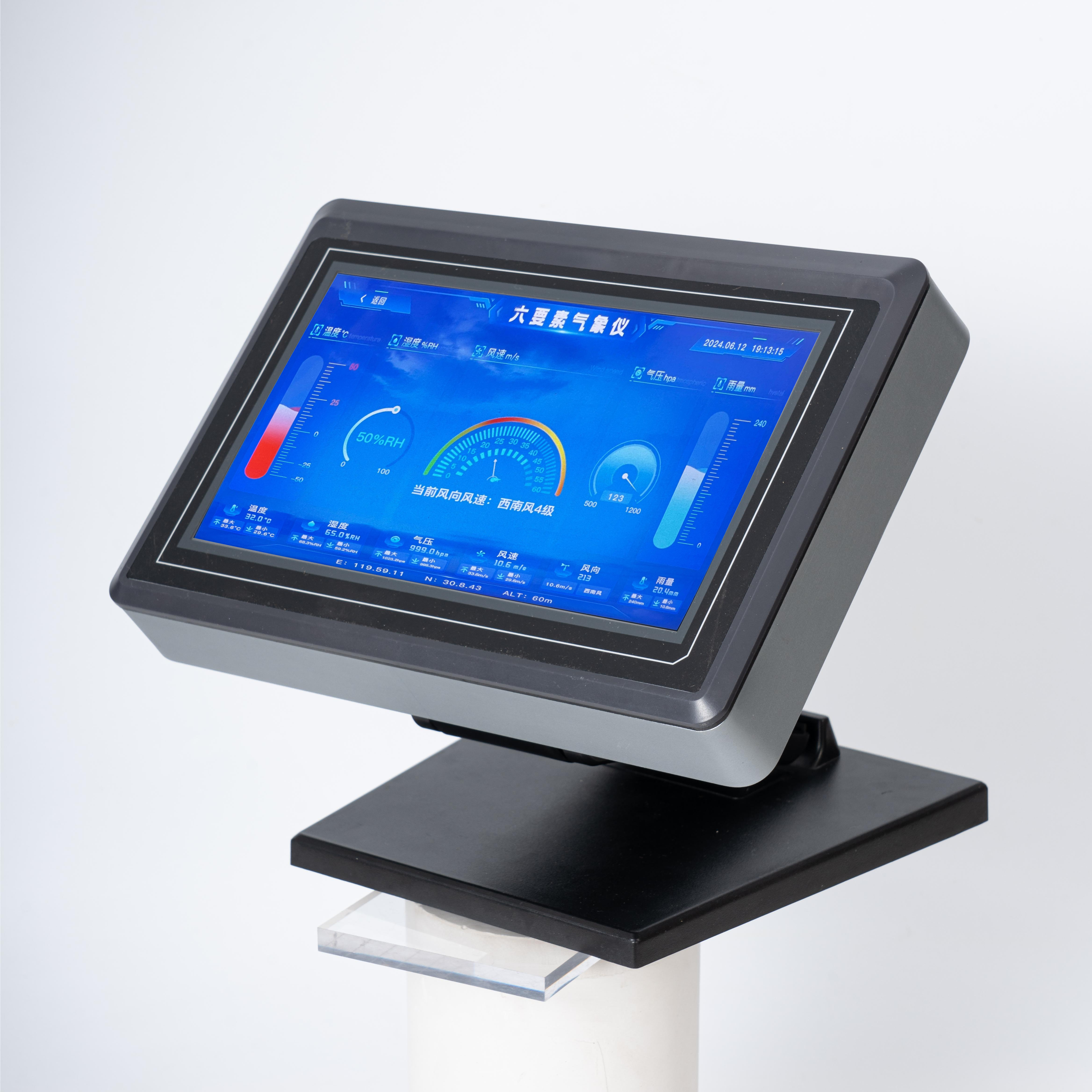

Marine meteorological display instrument with wind, temperature, humidity, pressure, local display, alarms, and Micro SD data logging.

Request Quote Download Datasheet

Output & Integration

RS485 Modbus RTU NMEA-compatible Micro SD

Overview

OM-MET-101 is the Zenocean public model for MarineTech display-instrument source materials such as DZZ1-1 and related marine meteorological host units. It combines wind sensing, temperature / humidity / pressure measurement, local display, threshold alarms, data logging, and optional network transmission.

Catalog Position

Series: OceanMet

Layer: Sensors

Key Features

Measures wind speed, wind direction, temperature, humidity, and pressure
Integrated 10.1-inch local display with alarm and clock functions
Supports Modbus RTU over RS485, with RS232 reserved and NMEA-compatible output behavior
Micro SD data storage with optional wired or wireless network transmission module

Applications

Meteorology Marine observation Ships and ports Airports Research programs Industrial and agricultural weather stations

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, Modbus RTU, NMEA-compatible, Micro SD
Wind resolution	0.1 m/s speed, 1 deg direction
Temperature resolution	0.1 C
Humidity resolution	0.1% RH
Pressure resolution	0.1 hPa
Wind accuracy	+/-0.3 m/s at <=10 m/s, +/-3% above 10 m/s
Direction accuracy	+/-3 deg
Temperature accuracy	+/-0.2 C
Humidity accuracy	+/-3% RH
Pressure accuracy	+/-0.5 hPa
Measurement range	Wind 0-70 m/s, direction 0-359 deg, temperature -50 to 60 C, humidity 0-100% RH, pressure 300-1100 hPa
Display	10.1 in, 1024 x 600
Data interfaces	NMEA 0183 or Modbus RTU
Power supply	DC 24 V, 1.5 A
Adapter	100-240 V AC input, 24 V DC 1.5 A output
Power consumption	<15 W
Data storage	Micro SD
Communication	RS485 with reserved RS232
Host size	281 x 192 x 61 mm
Host protection	IP65
Operating environment	-25 to 70 C, 10-90% RH
Storage environment	-25 to 85 C, 10-90% RH
Weight	3 kg

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

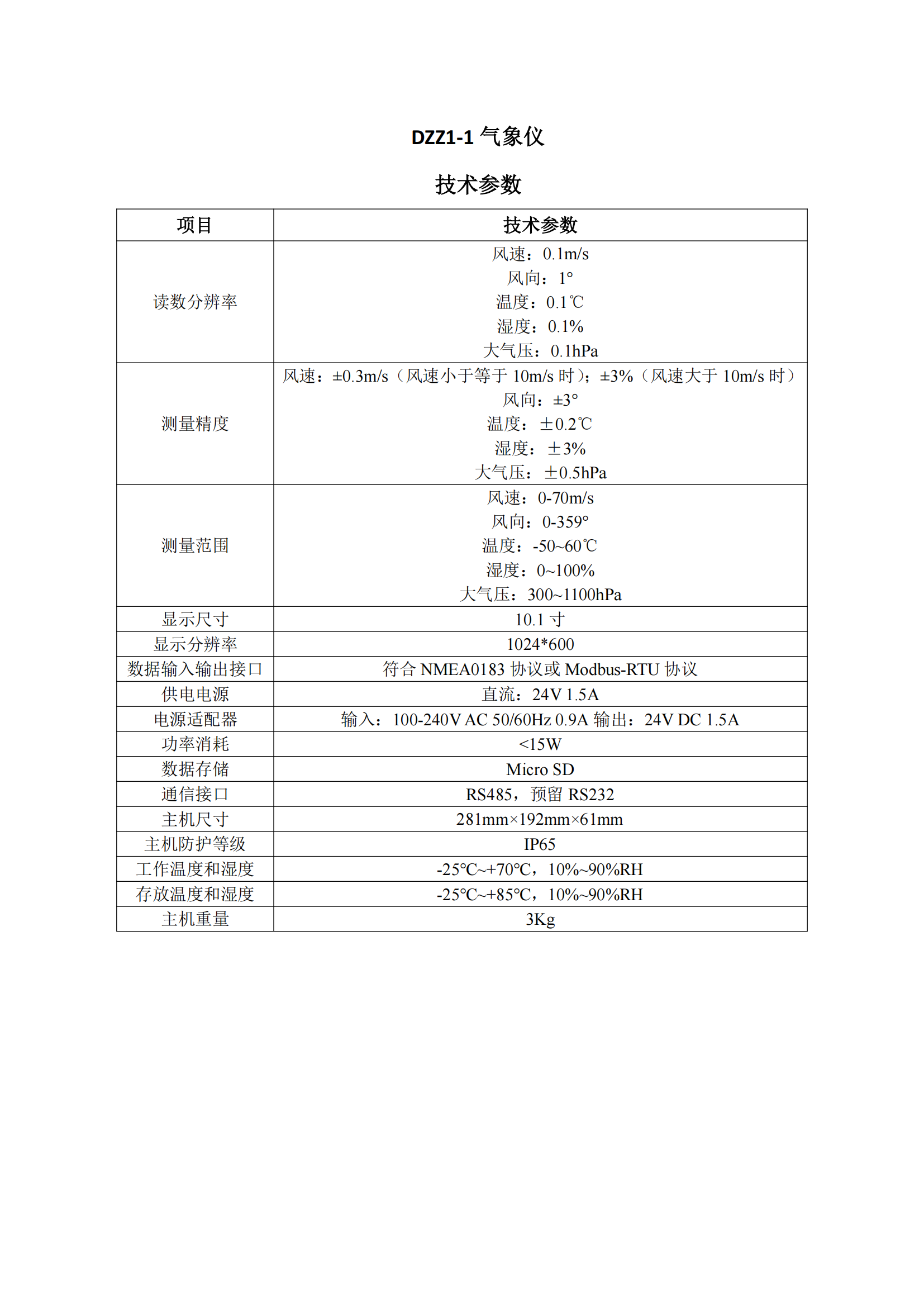

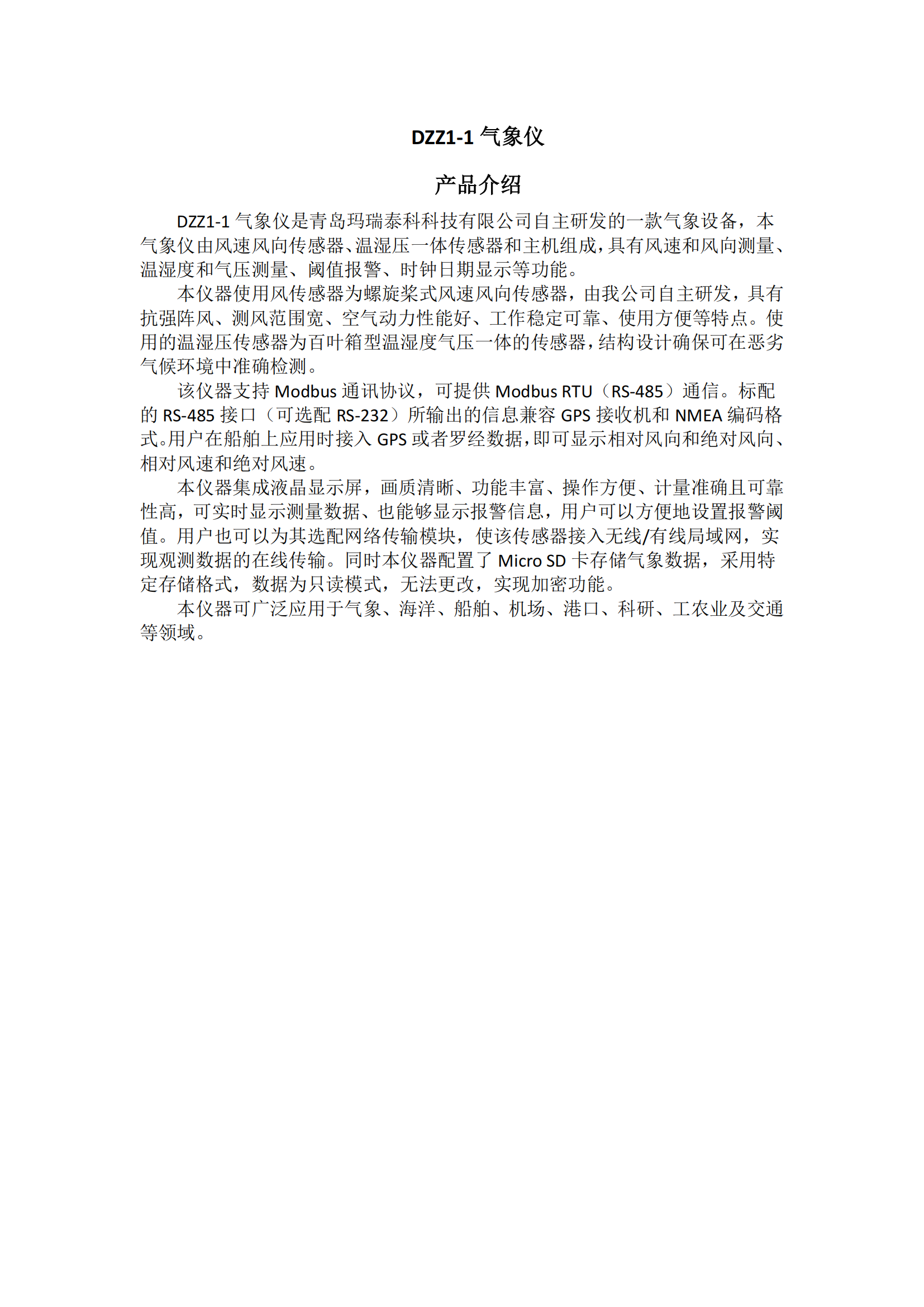

Reference Sheets
