CoreLink local display terminal / HMI for marine weather display, shipboard instrumentation, and station-side operator viewing.

Request Quote Download Datasheet

Output & Integration

NMEA 0183 Micro SD DTU optional

Overview

CL-HMI-700 is the Zenocean public model for CoreLink local display and meteorological HMI applications. The extracted MarineTech reference material reflects a shipboard package example with local wind display, relative / true wind presentation, local storage, and optional DTU uplink.

Catalog Position

Series: CoreLink

Layer: CoreLink

Key Features

Displays relative and true wind when compass, log, or GPS data is available
10.1-inch local display with embedded, desktop, or hanging installation options
Micro SD storage for traceable wind data records
Optional DTU uplink for cloud transmission of onboard wind data

Applications

Ships and vessels Bridge instrumentation Marine operations Shipboard safety monitoring

Technical Specifications

Series	CoreLink
Layer	Control Layer
Product Family	Data Acquisition, Telemetry & Alarm Control
Integration	NMEA 0183, Micro SD, DTU optional
Wind speed range	0-70 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	(0-20 m/s) +/-0.3 m/s or +/-3%
Start-up wind speed	<=0.5 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-3 deg
Direction response angle	<+/-10 deg
Reading resolution	Wind speed 0.1 m/s, wind direction 1 deg
Measurement range	Wind speed 0.5-70 m/s, direction 0-359 deg
Display	10.1 in, 1024 x 600
Data I/O	NMEA 0183
Power supply	DC 24 V, 1.5 A
Adapter	100-240 V AC input, 24 V DC 1.5 A output
Power consumption	<15 W
Data storage	Micro SD
Host size	281 x 192 x 61 mm
Host protection	IP65
Operating environment	-25 to 70 C, 10-90% RH
Storage environment	-25 to 85 C, 10-90% RH
Weight	3 kg

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

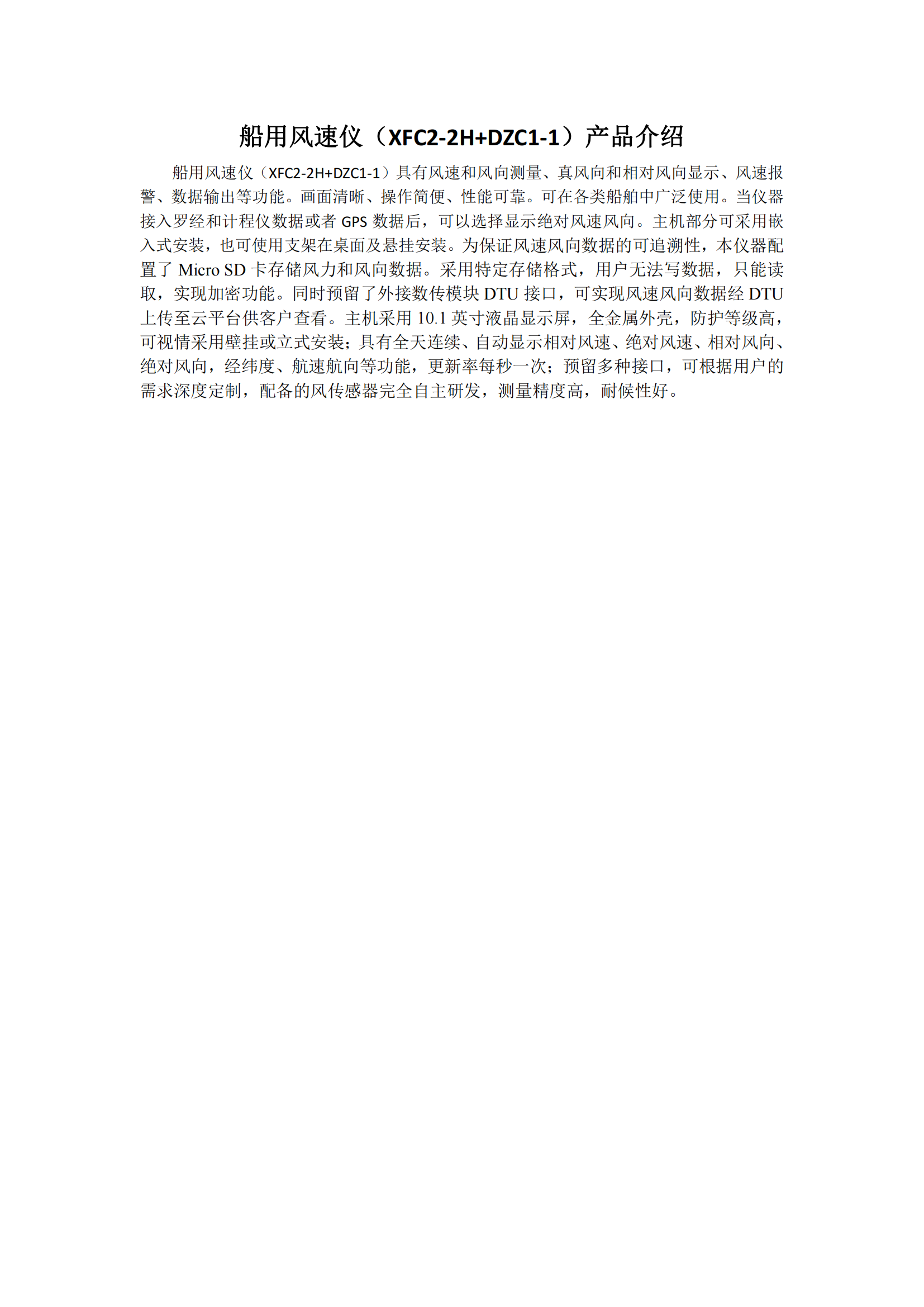

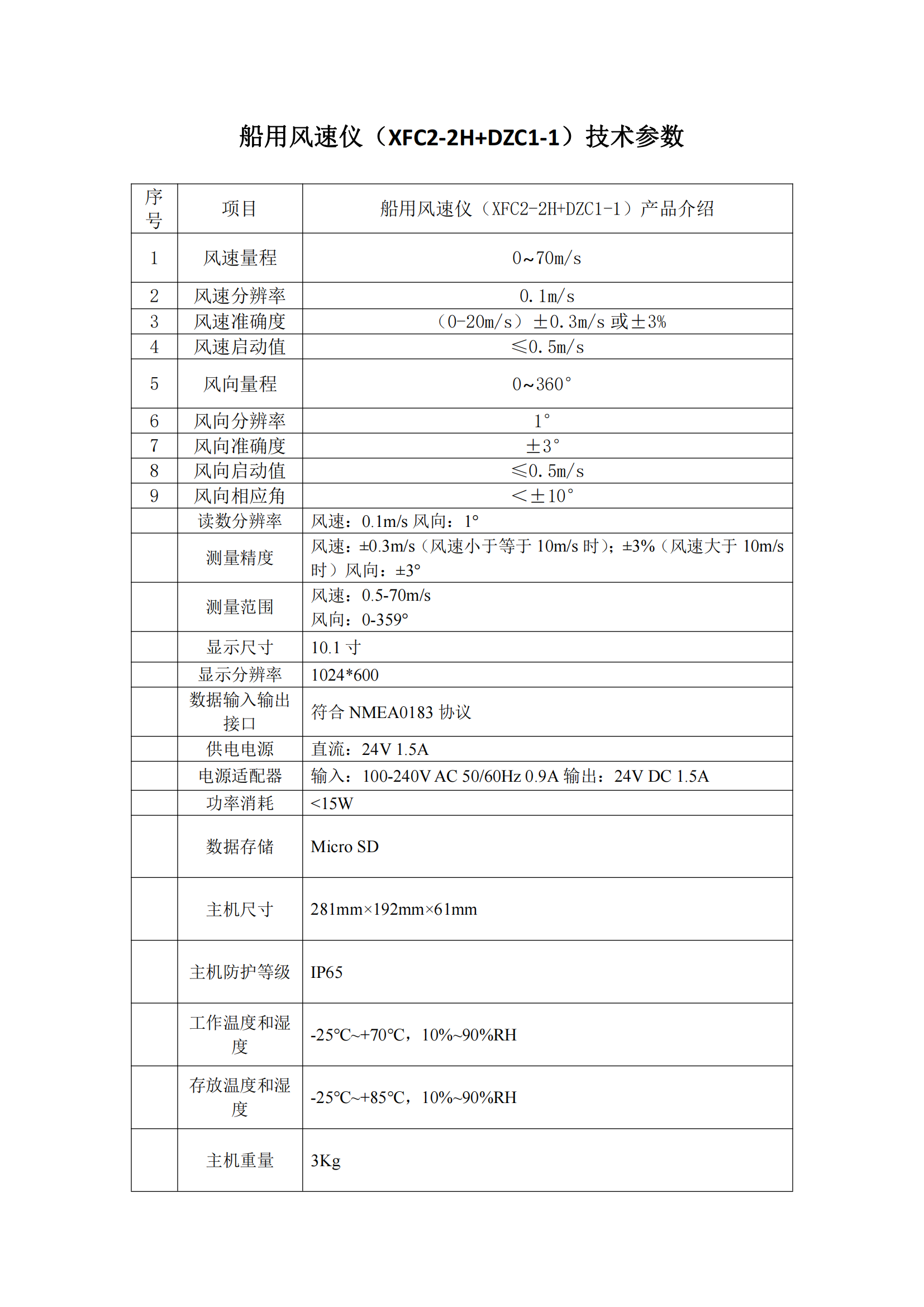

Reference Sheets
