High-Range Mechanical Wind Speed & Direction Sensor, 0-70 m/s

Q: Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Q: Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Q: Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.

Mechanical wind sensor for marine and wind-power use with a 0-70 m/s range and stainless-steel shaft construction.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA ASCII CAN RS232 SDI-12 Modbus RTU

Overview

The XFC2-2H extends the XFC2-2 mechanical sensor platform for higher wind ranges in marine, offshore, and wind-power environments. Its structure focuses on large range, high accuracy, corrosion resistance, and consistent field performance.

Catalog Position

Series: OceanMet

Layer: Sensors

Key Features

0-70 m/s wind speed range for exposed marine and wind-energy sites
Integrated wind speed and direction measurement
AAS housing with stainless-steel shaft for rugged outdoor service
Wide protocol customization for station, vessel, and control-system integration

Applications

Marine environmental monitoring Traffic and road-weather monitoring Agriculture and forestry meteorology Polar and cold-region meteorology Photovoltaic environmental monitoring Wind power meteorology

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, NMEA, ASCII, CAN, RS232, SDI-12, Modbus RTU
Wind speed range	0-70 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	(0-20 m/s) +/-0.3 m/s or +/-3%
Start-up wind speed	<=0.5 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-3 deg
Direction response angle	<+/-10 deg
Shaft material	Stainless steel
Housing material	AAS
Operating temperature	-55 to 55 C
Dimensions / weight	Height 445 mm, length 570 mm, weight 1.2 kg
Standard output	RS485 interface, NMEA protocol
Custom output options	Analog, NMEA, ASCII (Vaisala-compatible), CAN, RS232, SDI-12, Modbus RTU
Power supply	DC 9-24 V without conversion board, 12 V +/-10% with board
Protection grade	IP66
Mounting	Sleeve clamp lock as standard

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

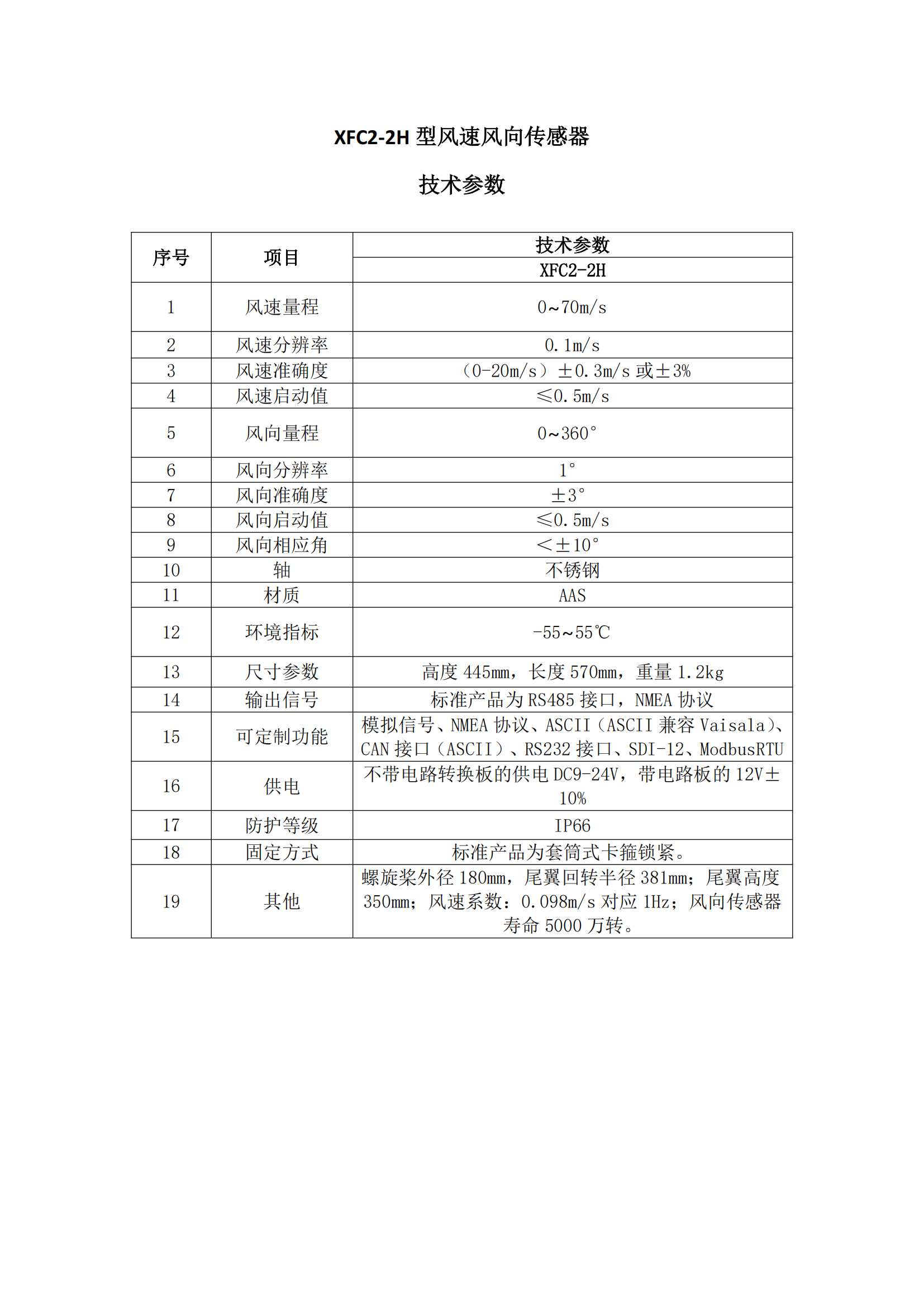

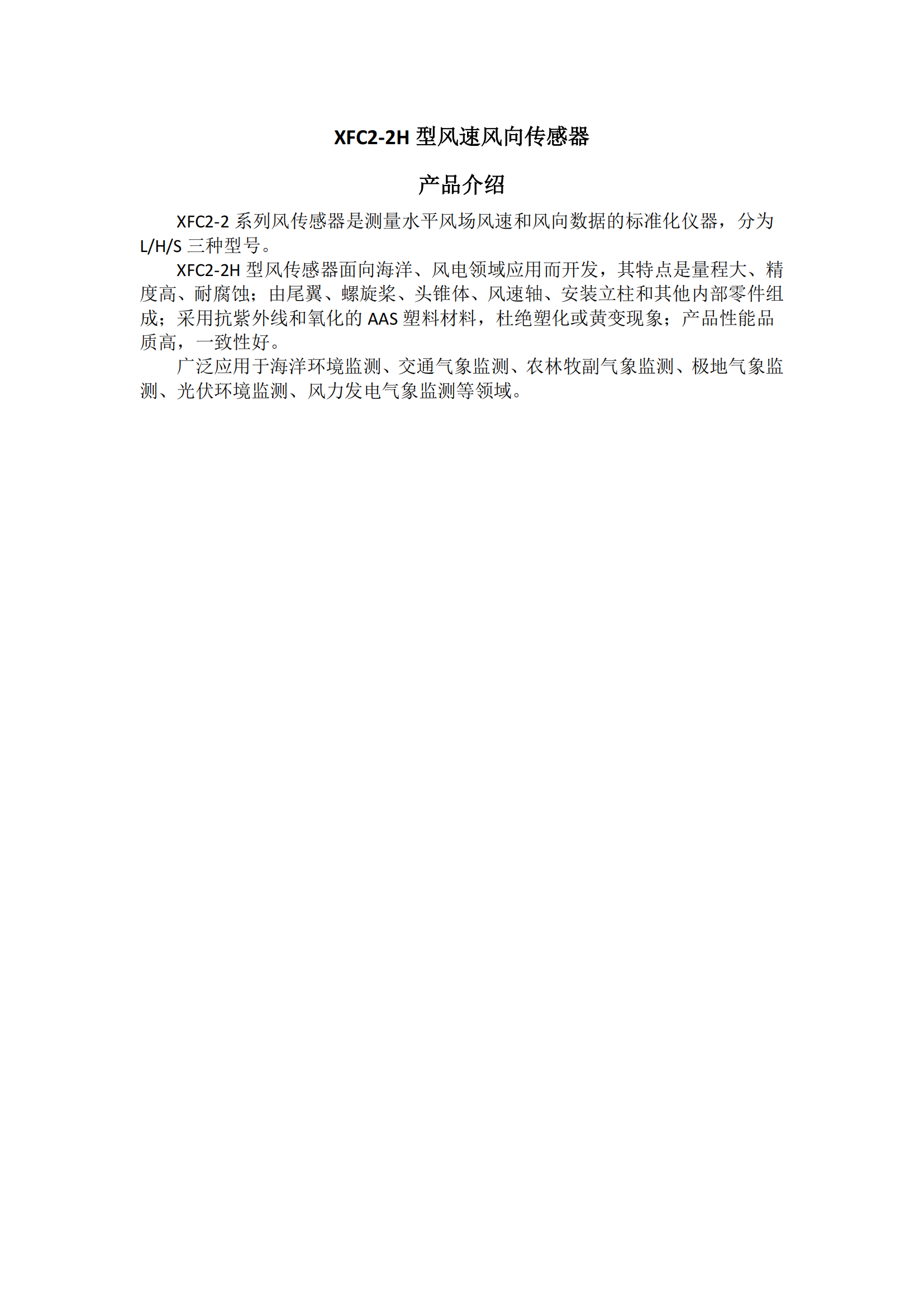

Reference Sheets

FAQ

Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.
