Mechanical Wind Speed & Direction Sensor, 0-60 m/s

Q: Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Q: Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Q: Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.

Mechanical marine wind sensor with a 0-60 m/s range, corrosion-resistant construction, and standard RS485 / NMEA output.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA ASCII CAN RS232 SDI-12 Modbus RTU

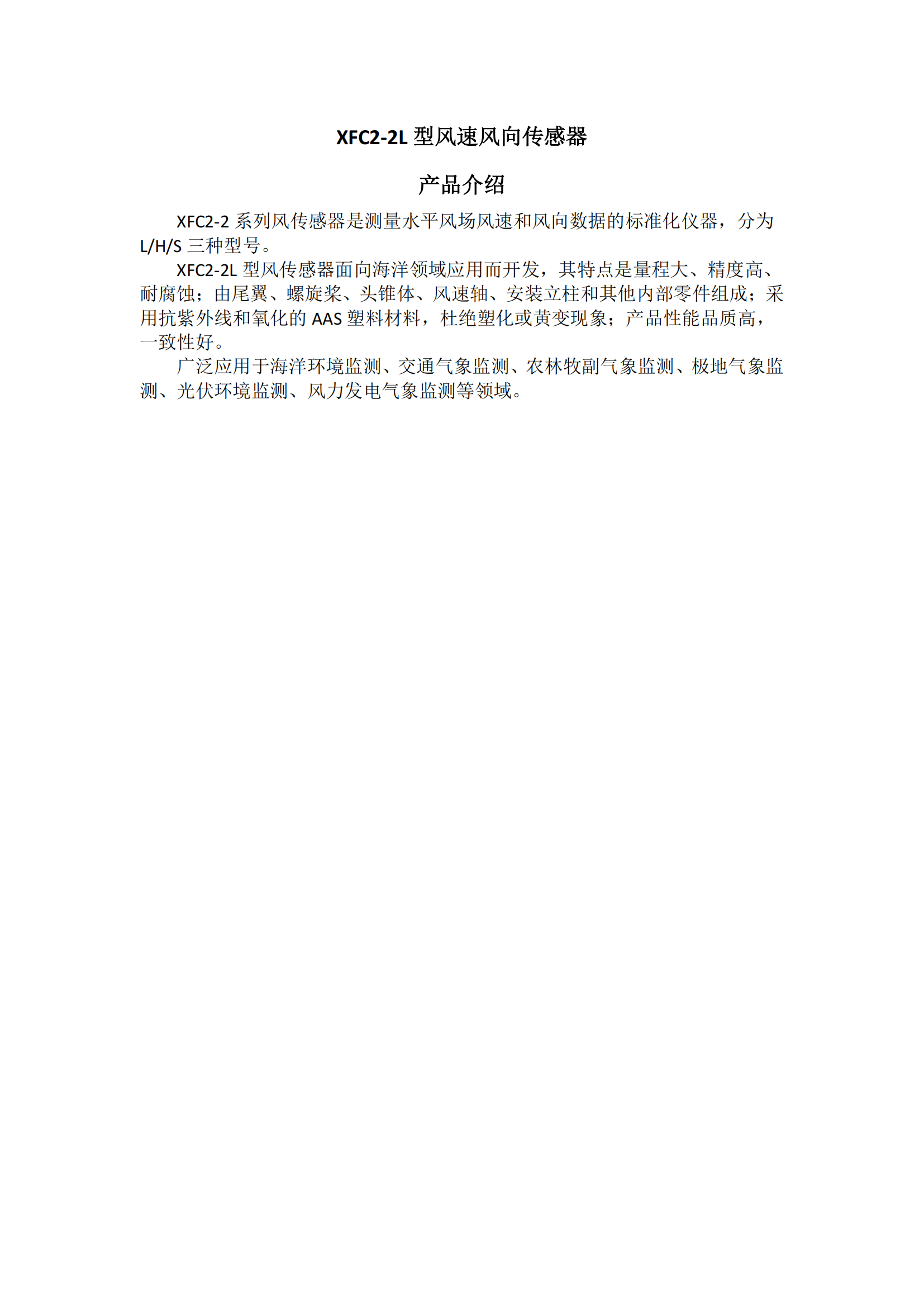

Overview

The XFC2-2L is part of the MarineTech XFC2-2 series for horizontal wind-field measurement. It is positioned for marine applications that need large measuring range, high accuracy, good corrosion resistance, and stable long-term consistency.

Catalog Position

Series: OceanMet

Layer: Sensors

Key Features

Mechanical wind speed and wind direction measurement in one assembly
AAS housing with carbon-fiber shaft for marine corrosion resistance
UV- and oxidation-resistant material system designed to avoid yellowing and plasticization
Suitable for long-term outdoor deployments on stations, vessels, and renewable-energy sites

Applications

Marine environmental monitoring Traffic and road-weather monitoring Agriculture and forestry meteorology Polar and cold-region meteorology Photovoltaic environmental monitoring Wind power meteorology

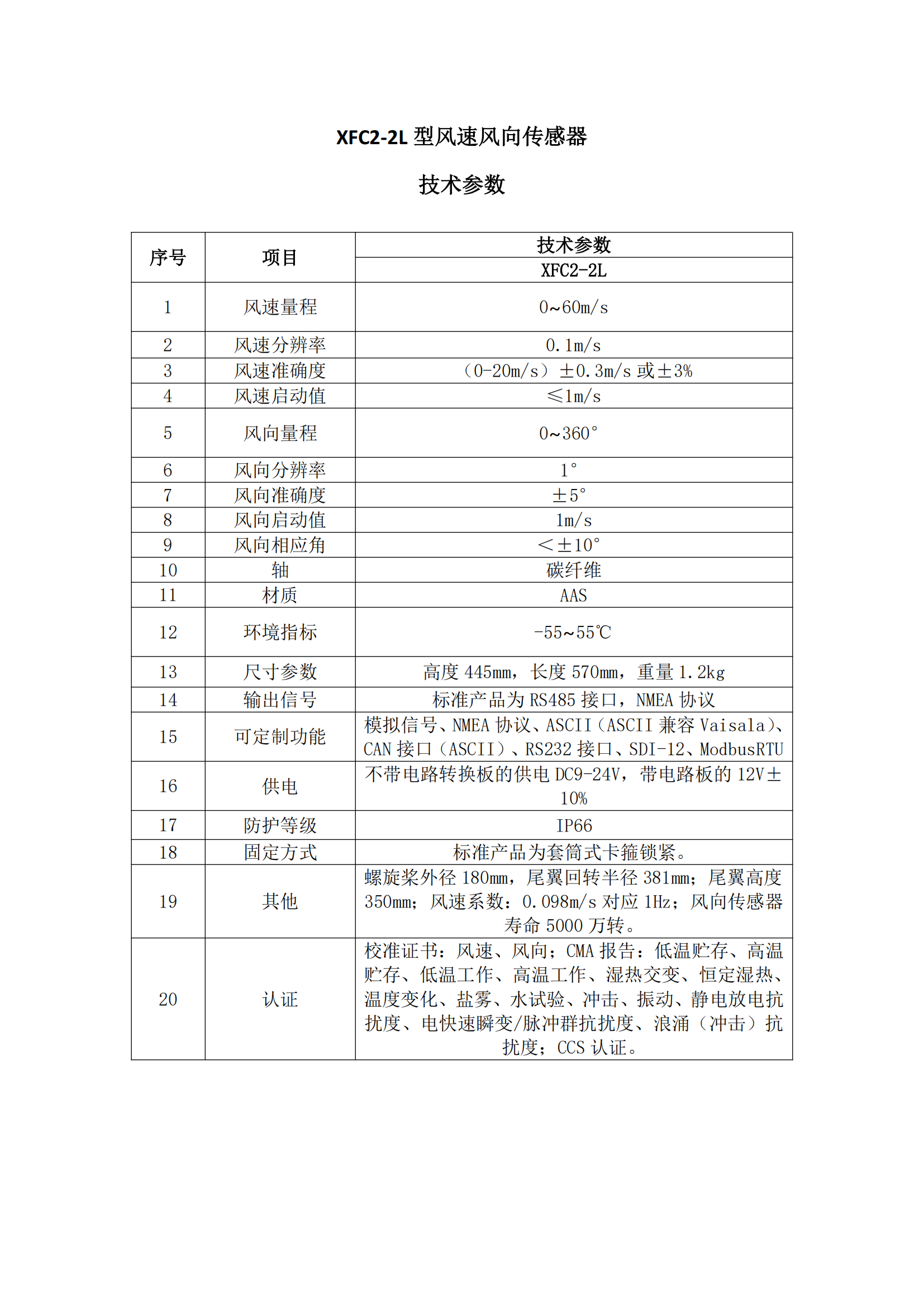

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, NMEA, ASCII, CAN, RS232, SDI-12, Modbus RTU
Wind speed range	0-60 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	(0-20 m/s) +/-0.3 m/s or +/-3%
Start-up wind speed	<=1 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-5 deg
Direction response angle	<+/-10 deg
Shaft material	Carbon fiber
Housing material	AAS
Operating temperature	-55 to 55 C
Dimensions / weight	Height 445 mm, length 570 mm, weight 1.2 kg
Standard output	RS485 interface, NMEA protocol
Custom output options	Analog, NMEA, ASCII (Vaisala-compatible), CAN, RS232, SDI-12, Modbus RTU
Power supply	DC 9-24 V without conversion board, 12 V +/-10% with board
Protection grade	IP66
Mounting	Sleeve clamp lock as standard
Certification	Wind speed and direction calibration certificate, CMA report set, and CCS certification

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

Reference Sheets

FAQ

Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.
