OM-UWS-75

Ultrasonic Wind Speed & Direction Sensor

Q: Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Q: Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Q: Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.

Ultrasonic wind sensor with no moving parts, 0-75 m/s range, fast response, and marine-ready IP66 protection.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA ASCII CAN SDI-12 Modbus RTU Analog

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, NMEA, ASCII, CAN, SDI-12, Modbus RTU, Analog
Wind speed range	0-75 m/s
Wind speed resolution	<=0.1 m/s
Wind speed accuracy	+/-0.5 m/s or +/-3% of reading
Start-up wind speed	0.1 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-2.5 deg
Material	AAS
Operating temperature	-40 to 60 C, optional -55 to 70 C
Dimensions	Height 168 mm, diameter 140 mm
Standard output	RS485 interface, NMEA protocol
Custom output options	Analog, NMEA, ASCII (Vaisala-compatible), CAN, SDI-12, Modbus RTU
Power supply	DC 12 V
Protection grade	IP66
Mounting	Sleeve clamp lock as standard, flange/top-screw customization available
Certification	CMA and CNAS environmental test reports

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

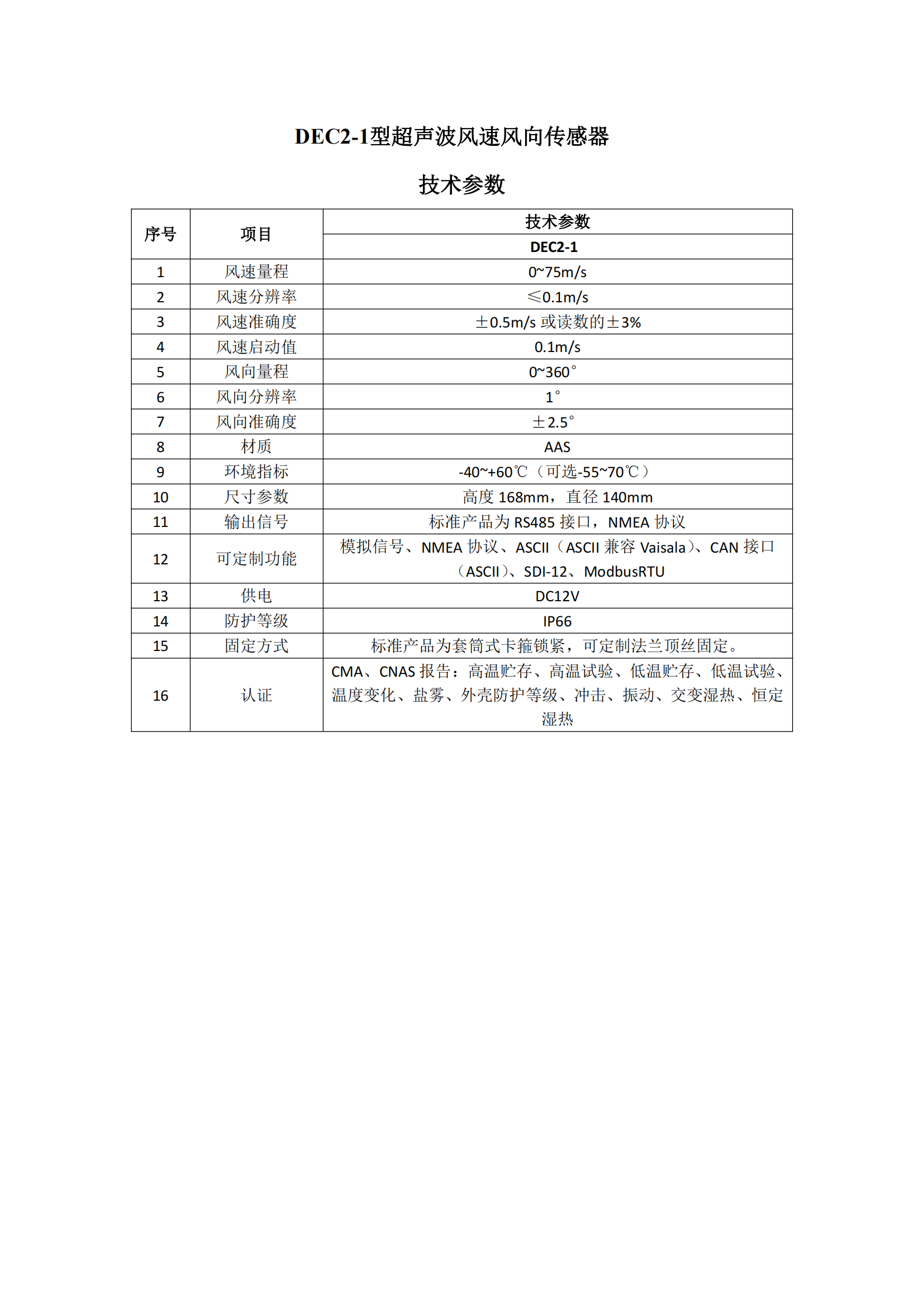

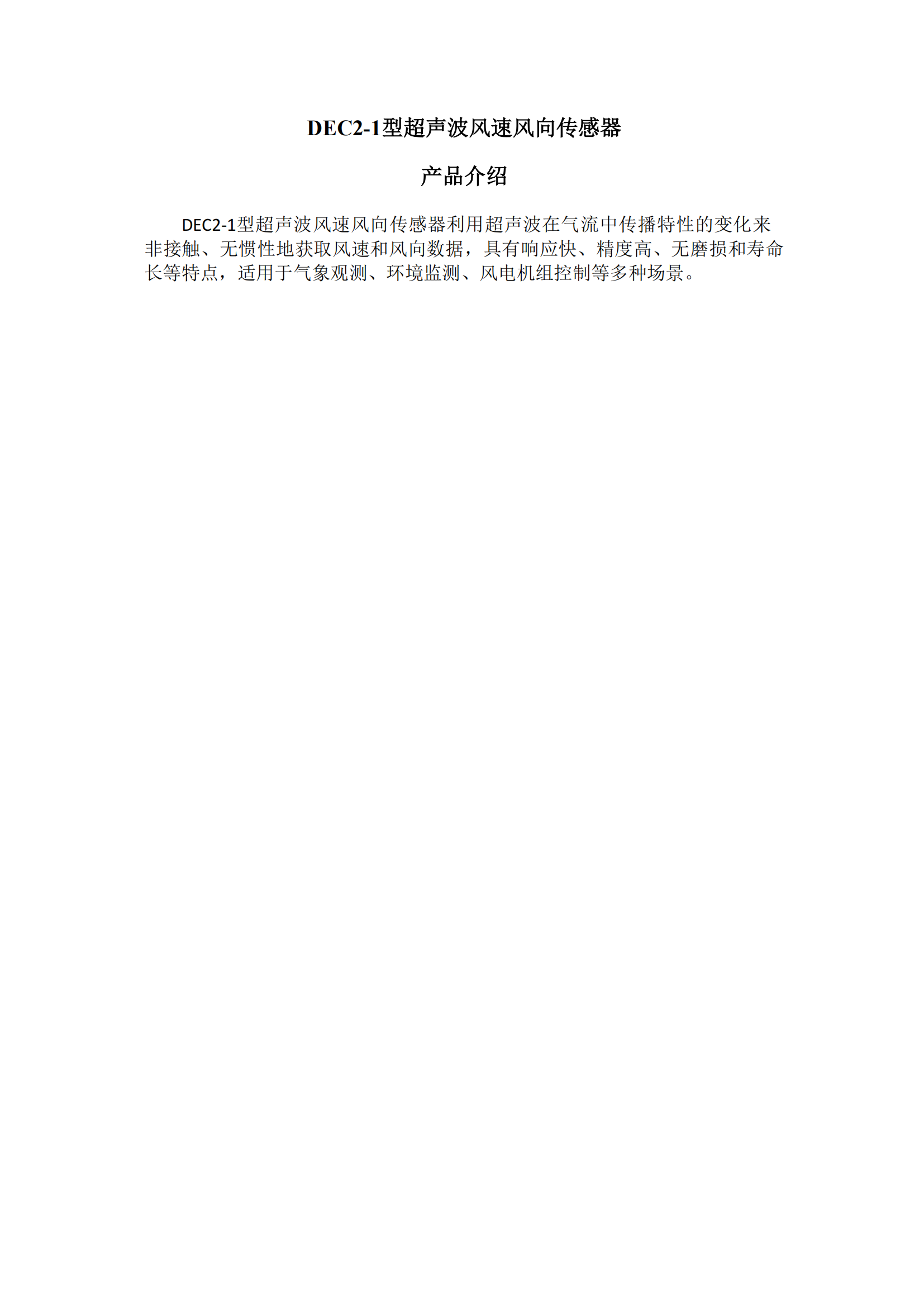

Reference Sheets

FAQ

Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.
