Compact Wind Speed & Direction Sensor

Q: Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Q: Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Q: Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.

Compact propeller-and-vane wind sensor with a 0-60 m/s range, IP66 protection, and broad protocol compatibility.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA ASCII CAN RS232 SDI-12 Modbus RTU Analog

Overview

The DEC1-1 is a standardized propeller-style wind speed and direction sensor for horizontal wind-field measurement. It emphasizes compact size, light weight, high accuracy, corrosion resistance, and straightforward field integration.

Catalog Position

Series: OceanMet

Layer: Sensors

Key Features

Compact mechanical wind speed and direction sensor
Lightweight AAS structure for mast and station installation
UV- and oxidation-resistant housing material for outdoor durability
Wide set of optional protocols for environmental and marine projects

Applications

Port and harbor weather monitoring Small marine stations Industrial weather points Environmental observation projects

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, NMEA, ASCII, CAN, RS232, SDI-12, Modbus RTU, Analog
Wind speed range	0-60 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	+/-0.3 m/s or +/-1%, whichever is greater
Start-up wind speed	<=0.5 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-3 deg
Direction response angle	<+/-10 deg
Material	AAS
Operating temperature	-40 to 55 C
Dimensions / weight	Height 373 mm, length 327 mm, weight 0.6 kg
Standard output	RS485 interface, NMEA protocol
Custom output options	Analog, NMEA, ASCII (Vaisala-compatible), CAN, RS232, SDI-12, Modbus RTU
Power supply	DC 5 V without conversion board, 12 V +/-10% with board
Protection grade	IP66
Mounting	Sleeve clamp lock as standard, flange/top-screw customization available
Other	130 mm propeller diameter, 218 mm tail rotation radius, 278 mm tail height, 0.076 m/s per 1 Hz wind-speed factor
Certification	CMA and CNAS environmental test reports

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

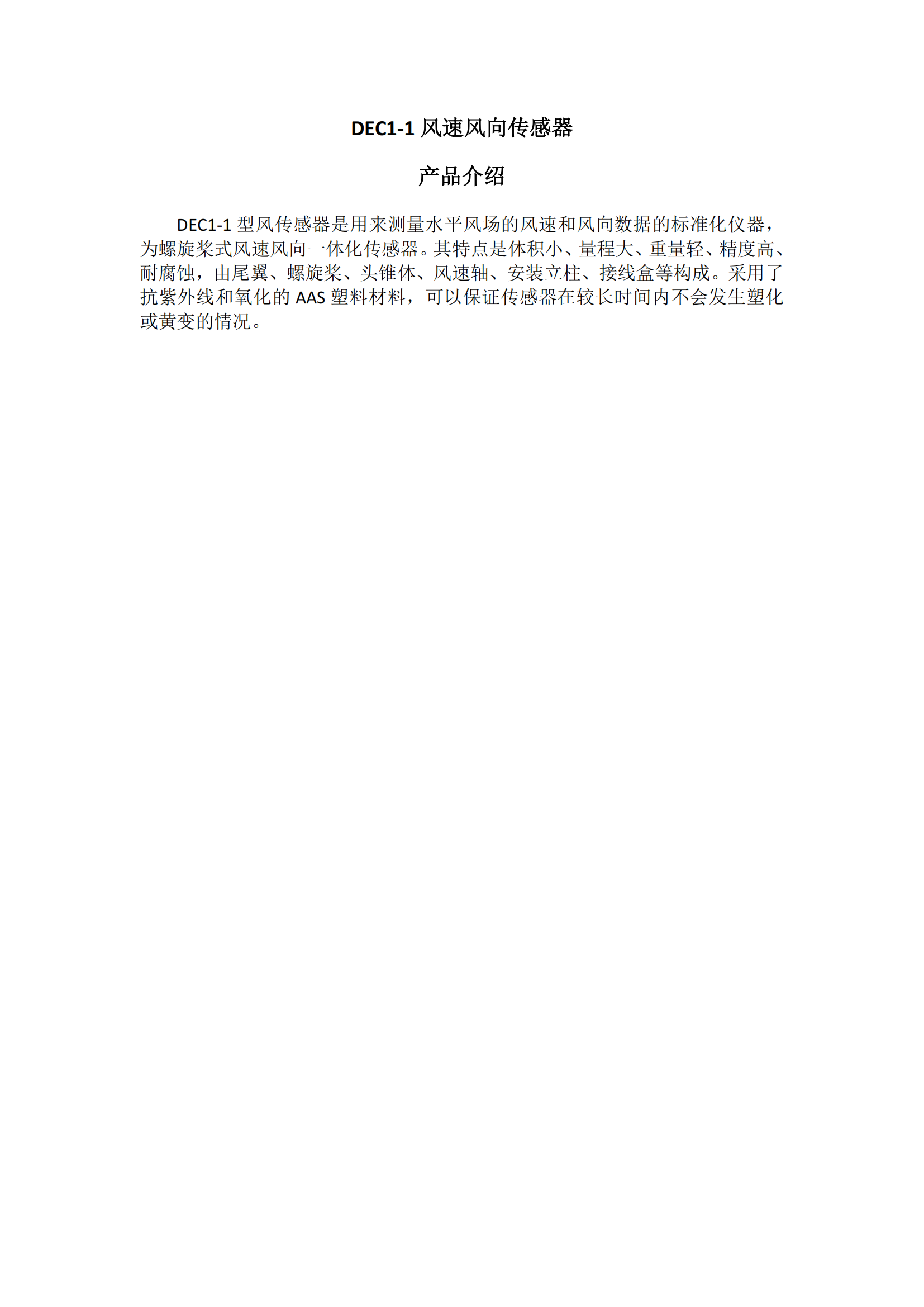

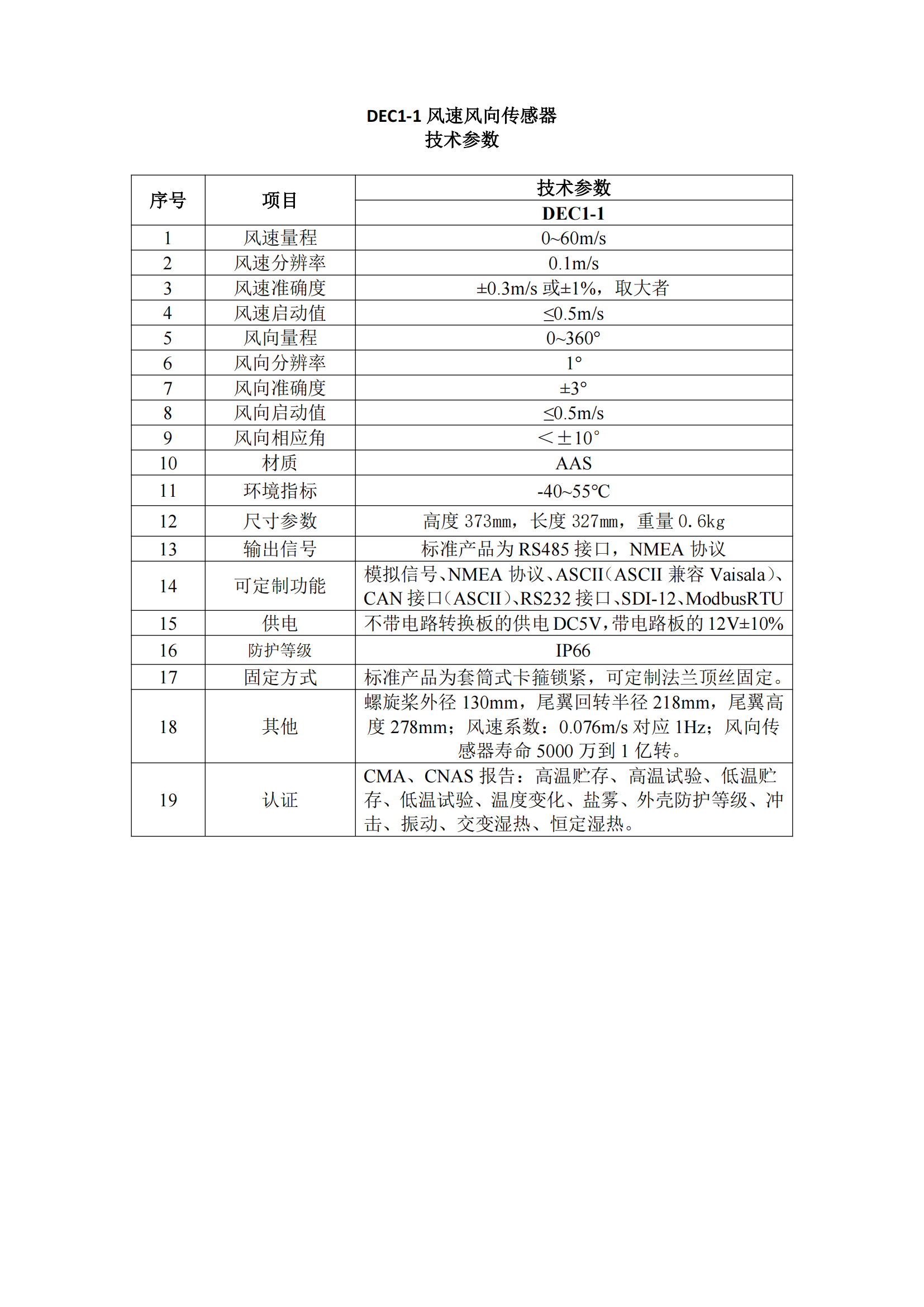

Reference Sheets

FAQ

Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.
