Lightweight Wind Speed & Direction Sensor

Q: Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Q: Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Q: Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.

Lightweight DEC-series wind sensor with compact dimensions, configurable direction options, and marine-ready IP66 protection.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA ASCII CAN RS232 SDI-12 Modbus RTU Analog

Overview

The DEC1-1L keeps the compact mechanical DEC platform while reducing weight and preserving corrosion resistance. It is suitable for applications that need an easier-to-integrate wind sensor with project-configurable direction functions.

Catalog Position

Series: OceanMet

Layer: Sensors

Key Features

Compact propeller-style sensing platform for small installations
Project-configurable wind-direction channel options
AAS construction for UV and oxidation resistance
Supports the same serial and industrial interface families as the DEC1-1

Applications

Lightweight monitoring structures Mobile and temporary installations Environmental stations Alarm-integrated wind systems

Technical Specifications

Series	OceanMet
Layer	Sensor Layer
Product Family	Marine Meteorological Sensors
Integration	RS485, NMEA, ASCII, CAN, RS232, SDI-12, Modbus RTU, Analog
Wind speed range	0-60 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	+/-0.3 m/s or +/-1%, whichever is greater
Start-up wind speed	<=0.5 m/s
Wind direction range	Project-configurable / optional
Wind direction resolution	Project-configurable / optional
Wind direction accuracy	Project-configurable / optional
Direction response angle	<+/-10 deg
Material	AAS
Operating temperature	-40 to 55 C
Dimensions / weight	Height 373 mm, length 327 mm, weight 0.6 kg
Standard output	RS485 interface, NMEA protocol
Custom output options	Analog, NMEA, ASCII (Vaisala-compatible), CAN, RS232, SDI-12, Modbus RTU
Power supply	DC 5 V without conversion board, 12 V +/-10% with board
Protection grade	IP66
Mounting	Sleeve clamp lock as standard, flange/top-screw customization available
Other	130 mm propeller diameter, 218 mm tail rotation radius, 278 mm tail height, 0.076 m/s per 1 Hz wind-speed factor
Certification	CMA and CNAS environmental test reports

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

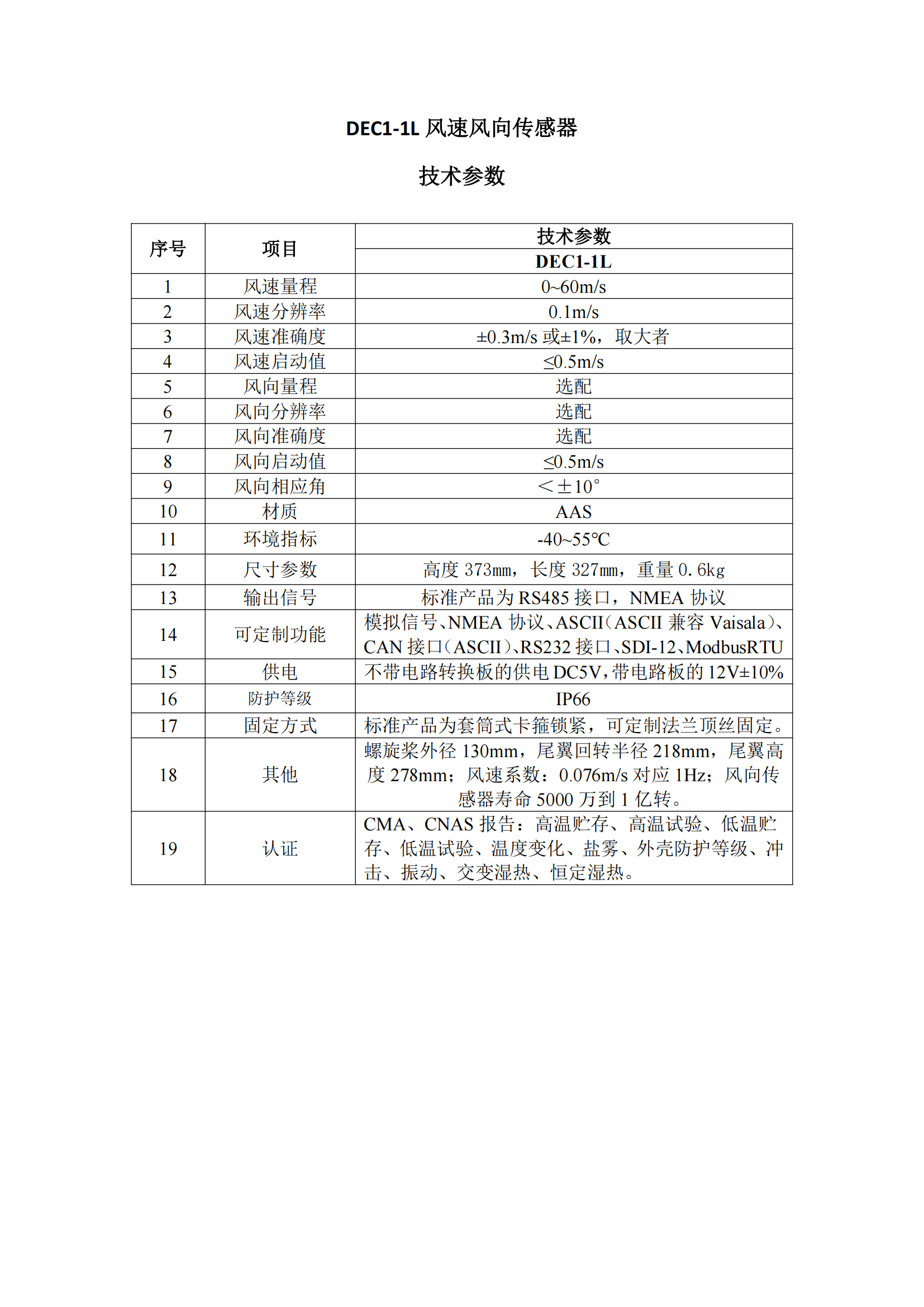

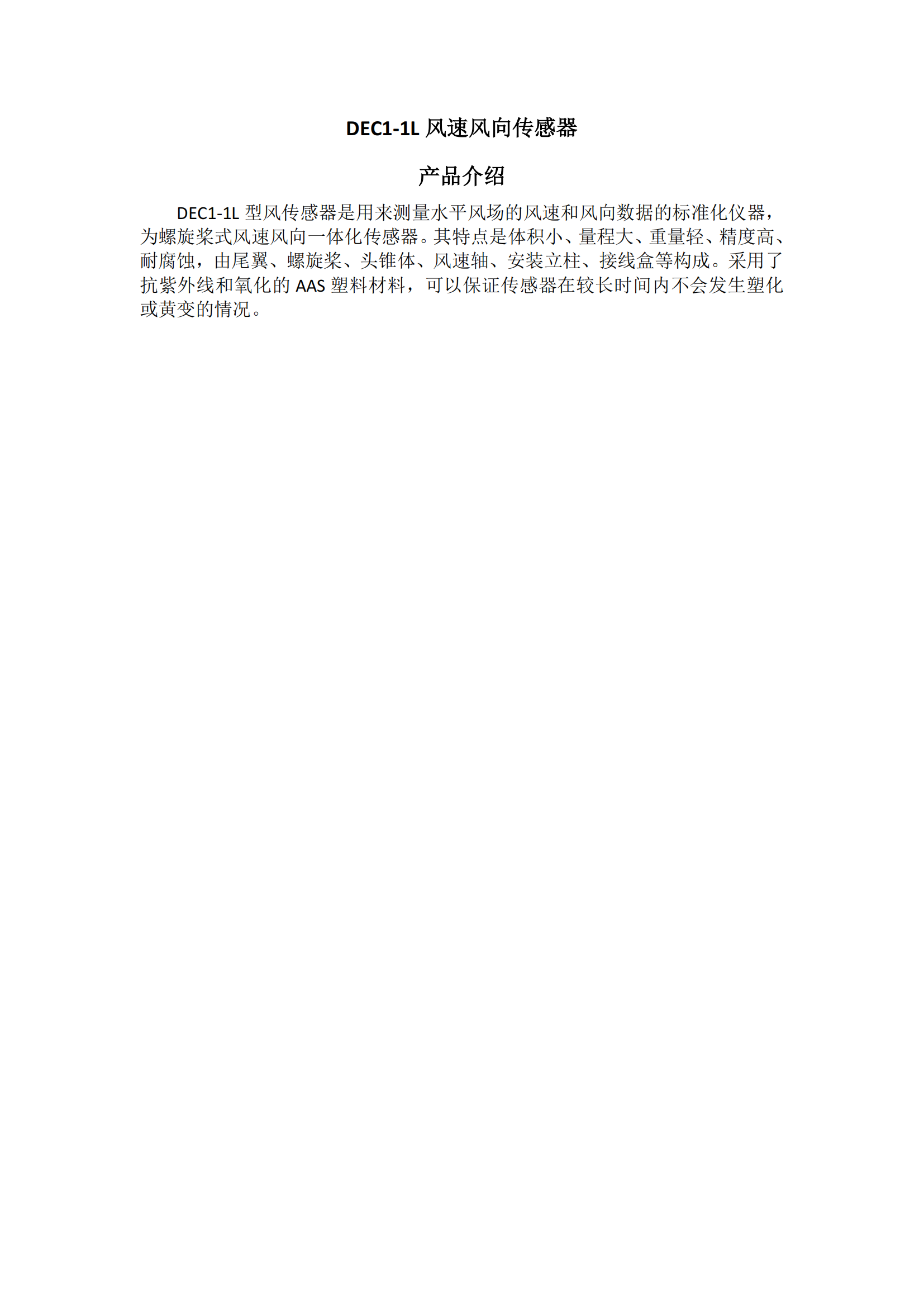

Reference Sheets

FAQ

Can Zenocean products be integrated with third-party monitoring platforms?

Yes. Many Zenocean products are offered with RS485, Modbus, NMEA, or project-specific communication options, making them suitable for integration into third-party acquisition and software environments.

Can you help recommend a sensor model based on the application?

Yes. Buyers can share the application, required parameters, output signal, environment, quantity, and installation conditions, and Zenocean can recommend suitable models or a system configuration.

Are documents available for export and project quotation?

Yes. Product catalogs, datasheets, communication guidance, and selection support can be prepared for export-oriented B2B discussions and project submissions.
