Wind Alarm Controller

CoreLink wind alarm controller with local display, audible / visual alarms, relay output, and optional 4G remote transmission.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA-0183 Relay 4-20 mA 4G optional

Overview

CL-ALM-100 is the Zenocean public model for the MarineTech DEJ1 wind alarm device. It continuously monitors instantaneous wind speed and direction, raises threshold alarms, stores recent data on SD card, and can optionally forward data through a 4G module.

Catalog Position

Series: CoreLink

Layer: CoreLink

Key Features

Continuous monitoring of instantaneous wind speed and wind direction
Audible buzzer alarm plus flashing LED warning
One relay output and 4-20 mA output option for downstream control
Built-in SD card logging with optional 4G remote transmission

Applications

Airports Ports and harbors Tower cranes Environmental monitoring sites Forestry and fire-prevention systems

Technical Specifications

Series	CoreLink
Layer	Control Layer
Product Family	Data Acquisition, Telemetry & Alarm Control
Integration	RS485, NMEA-0183, Relay, 4-20 mA, 4G optional
Wind display	Instantaneous and average wind speed, display range 0-100 m/s
Wind direction range	0-360 deg
LED direction indication	0-360 deg
Local update rate	1 record / second
Protocol	NMEA-0183, customizable
Power supply	12 V +/-10% with AC 220 V to DC 12 V adapter
Input signal	RS485, 4800 bps, customizable
Output signal	1 relay control output and 4-20 mA output option
Runtime	STM32H750V platform with Cortex-M7 core and FreeRTOS
Data storage	Onboard SD card slot
Remote transmission	Optional 4G module
Alarm	Buzzer plus flashing LED
Protection grade	IP51
Mounting	Screw or clamp fixing via mounting holes
Size	160 x 160 x 80 mm, weight 0.6 kg

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.

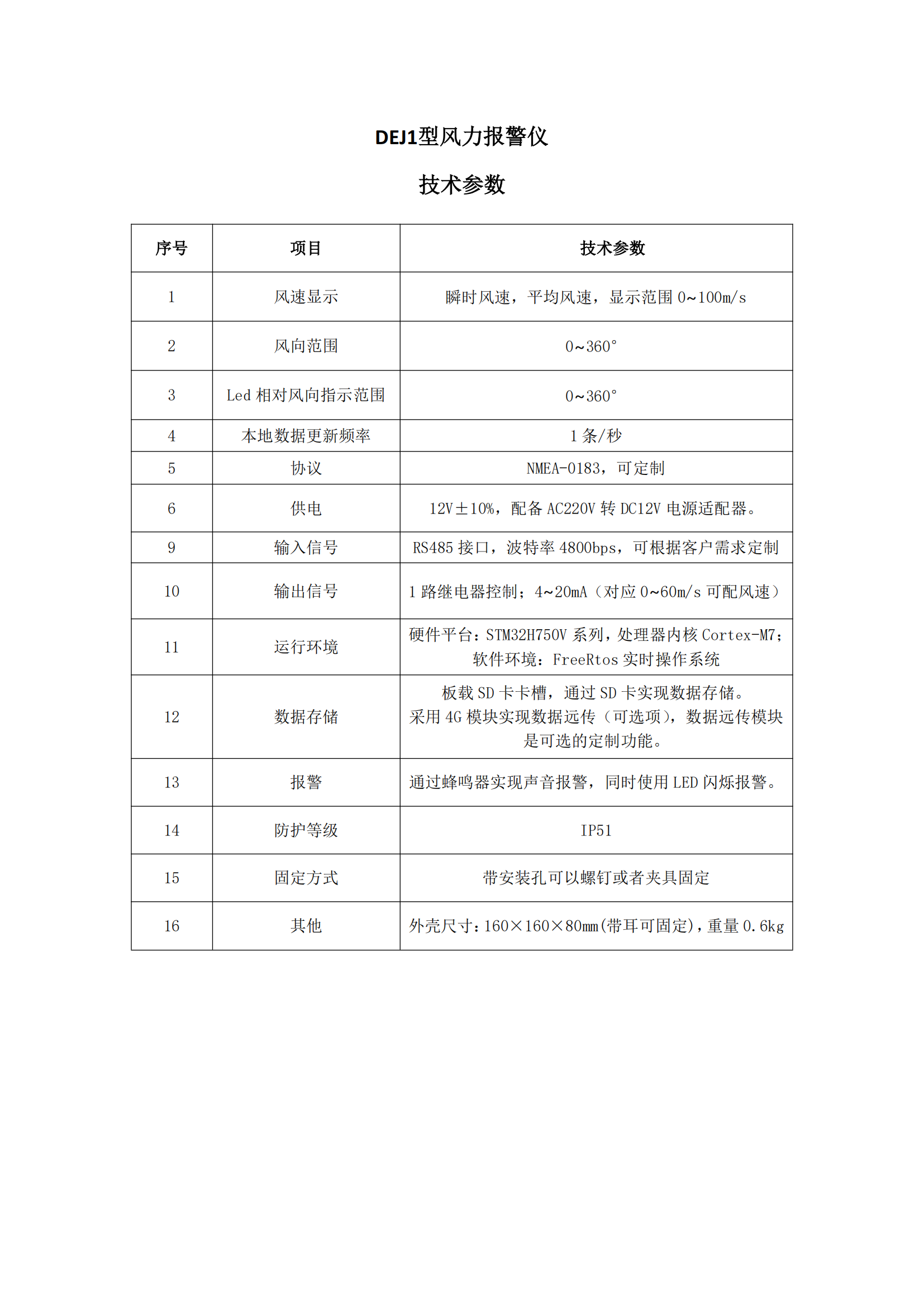

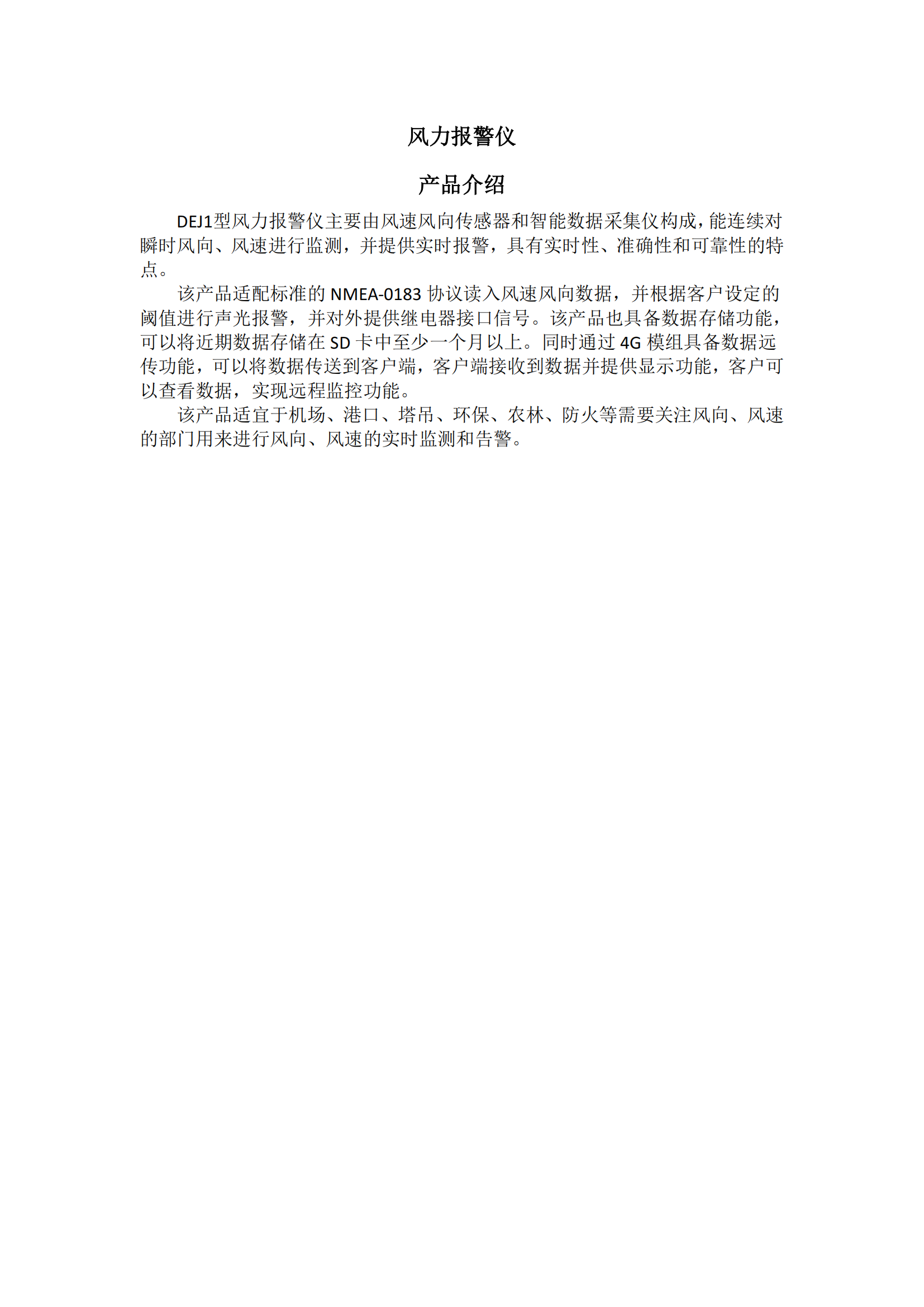

Reference Sheets
