CoreLink wind speed and direction alarm controller package for real-time wind monitoring, local alerts, and remote supervision.

Request Quote Download Datasheet

Output & Integration

RS485 NMEA-0183 Relay 4-20 mA 4G optional

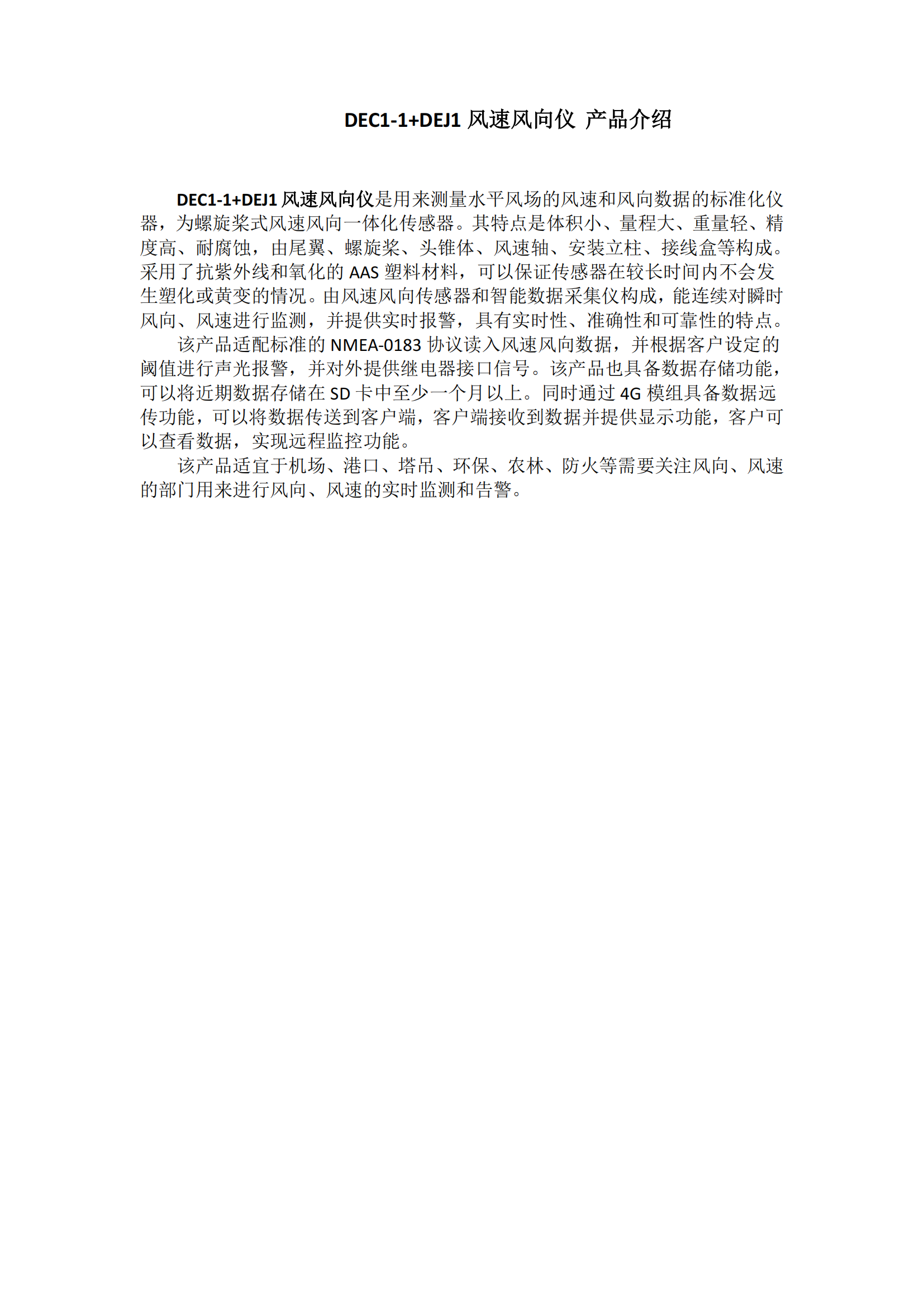

Overview

CL-ALM-160 is the Zenocean public model for the MarineTech DEC1-1 + DEJ1 wind alarm system. It measures horizontal wind field speed and direction, raises threshold alarms, stores recent data, and supports optional 4G uplink for remote monitoring.

Catalog Position

Series: CoreLink

Layer: CoreLink

Key Features

Combined sensing and alarming package built around DEC1-1 and DEJ1
Real-time wind-speed and wind-direction monitoring with local display
Audible and visual alarms plus relay signaling for safety workflows
SD card logging and optional 4G remote transmission

Applications

Airports Ports and terminals Tower cranes Environmental safety monitoring Forestry and fire-prevention sites

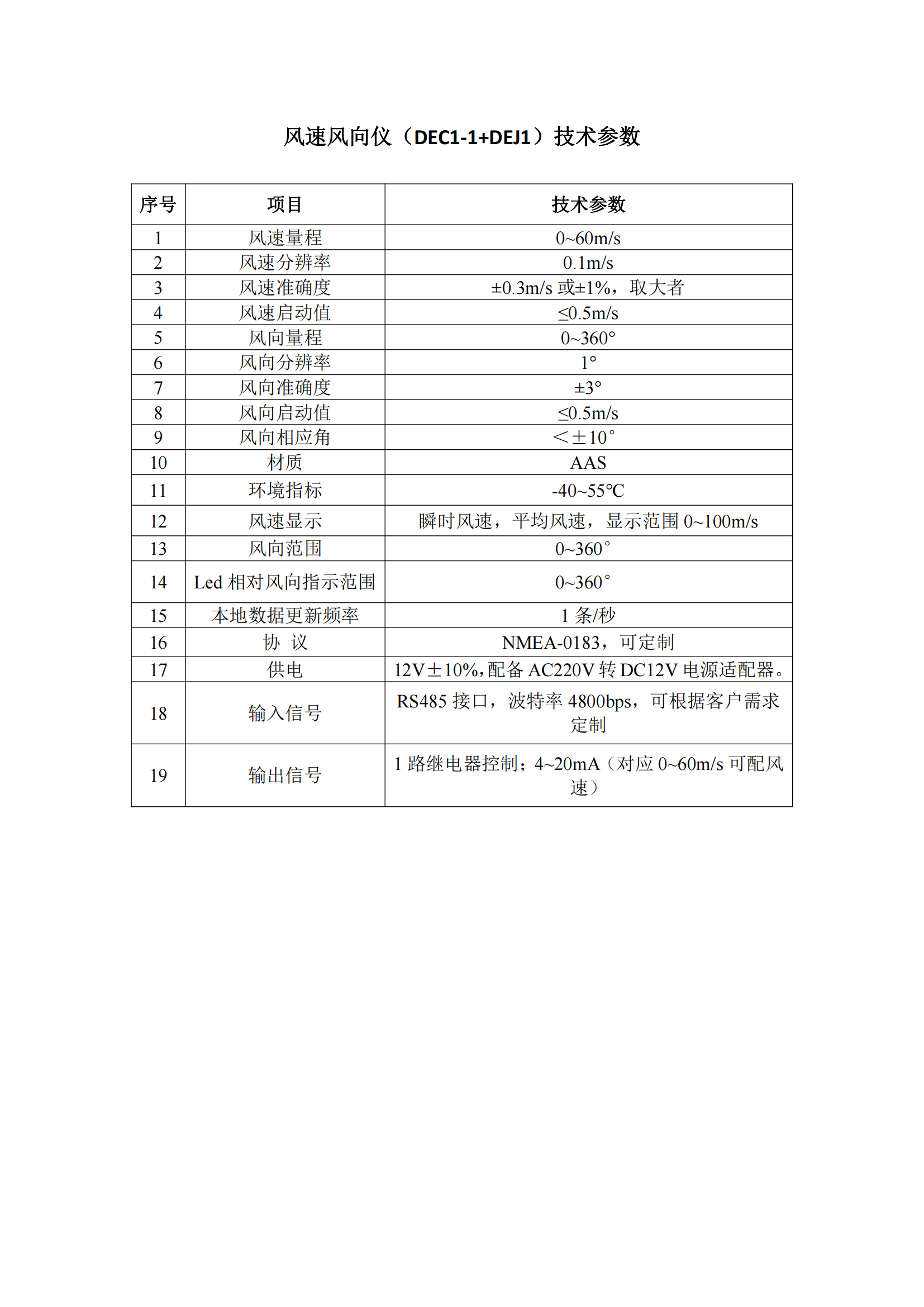

Technical Specifications

Series	CoreLink
Layer	Control Layer
Product Family	Data Acquisition, Telemetry & Alarm Control
Integration	RS485, NMEA-0183, Relay, 4-20 mA, 4G optional
Wind speed range	0-60 m/s
Wind speed resolution	0.1 m/s
Wind speed accuracy	+/-0.3 m/s or +/-1%, whichever is greater
Start-up wind speed	<=0.5 m/s
Wind direction range	0-360 deg
Wind direction resolution	1 deg
Wind direction accuracy	+/-3 deg
Direction response angle	<+/-10 deg
Material	AAS
Operating temperature	-40 to 55 C
Wind display	Instantaneous and average wind speed, display range 0-100 m/s
LED direction indication	0-360 deg
Local update rate	1 record / second
Protocol	NMEA-0183, customizable
Power supply	12 V +/-10% with AC 220 V to DC 12 V adapter
Input signal	RS485, 4800 bps, customizable
Output signal	1 relay control output and 4-20 mA output option

Output & Integration

Zenocean products are specified for integration with marine stations, buoy telemetry, PLC cabinets, environmental monitoring networks, and cloud-connected data platforms.

Support for RS485, Modbus, NMEA, and system-specific protocols.
Optional power and signal configurations based on project architecture.
Mechanical and electrical coordination for outdoor and marine deployments.
